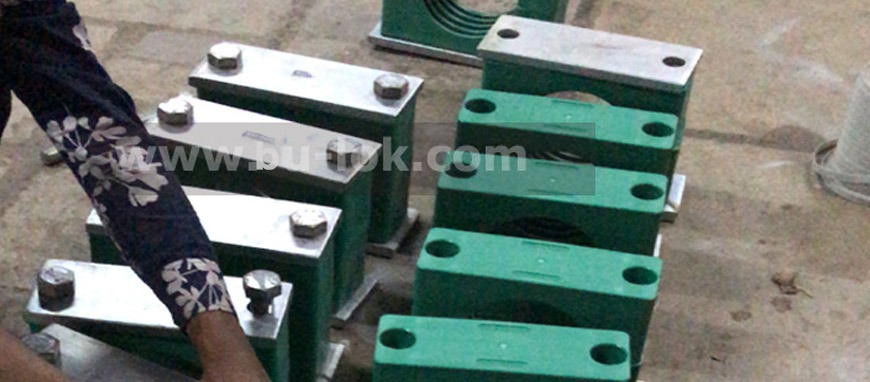

Stainless Steel 304 Tube Clamps

BU-Lok Valves & Fitting India Pvt Ltd, where precision engineering meets quality excellence. As a trusted leader in the industry, we take pride in delivering high-performance solutions for your piping and clamping needs. With an unwavering commitment to innovation, precision, and customer satisfaction, we are pleased to present our range of Stainless Steel 304 Tube Clamps.

What are Stainless Steel 304 Tube Clamps?

Our Stainless Steel 304 Tube Clamps represent a pinnacle of engineering excellence. Crafted from top-grade Stainless Steel 304, these clamps are designed to securely fasten and support tubes in a wide range of industrial applications. Stainless Steel 304, known for its exceptional corrosion resistance and durability, ensures that these clamps can withstand harsh environments and provide long-lasting performance.

What are the Purpose of Stainless Steel 304 Tube Clamps?

Stainless Steel 304 Tube Clamps serve as essential components in piping systems, offering several key purposes:

1. Secure Fastening: These clamps firmly hold tubes in place, preventing unwanted movement, vibrations, and potential damage to the system.

2. Corrosion Resistance: Stainless Steel 304's remarkable corrosion resistance makes these clamps ideal for applications where exposure to moisture, chemicals, or harsh weather conditions is a concern.

3. Support and Stability: They provide essential support, ensuring that tubes remain stable and securely positioned, even in demanding and high-pressure environments.

4. Versatility: Stainless Steel 304 Tube Clamps are highly versatile and can be employed across various industries, including manufacturing, construction, petrochemical, and more.

5. Enhanced Safety: These clamps contribute to a safer work environment by preventing tube dislodgment or failure, reducing the risk of accidents and injuries.

6. Noise Reduction: Stainless Steel 304 Tube Clamps help dampen vibrations and noise generated by fluid flow within the tubes, contributing to a quieter workplace.

7. Maintenance Ease: They simplify maintenance tasks by ensuring that tubes remain in their intended positions, allowing for quick and efficient inspections or repairs.

8. Longevity: Stainless Steel 304's exceptional durability ensures that these clamps have a long service life, reducing the need for frequent replacements and associated costs.

Specification and Material Grade of SS 304 Tube Clamps

Brand	BU-LOK
Equivalent To	STAUFF, SWAGELOK, PARKER
Structure	SS 304 tube clamp
Material	Jaws – Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt – Steel or Stainless Steel
Size Range	OD 6 mm – 76.1 MM
Color	Silver

BU-Lok Valves & Fitting India Pvt Ltd offers a selection of bottom plates to cater to diverse requirements:

Material Options:

- Steel (ST 37.5, IS 2062, IS 1018) with Trivalent Zinc Coated or Phosphatised Finish.

- Stainless Steel (SS 304) with a Natural Finish.

Bolt Varieties:

- Steel Bolts (Grade 4.6, 8.8, 10.9).

- Stainless Steel Bolts (Grade SS 304, SS 316).

Available Sizes:

- Ranging from 6 mm to 219 mm (¼" to 8").

Series Offered:

- Standard Series.

- Heavy Series.

Mechanical Properties of 304 SS Pipe Clamps

Grade	(% in 50mm) Elongation minimum	0.2% Proof Yield Strength (MPa) minimum	Strength of Tensile (MPa) minimum	Plate Hardness
				Brinell (HB) max	Rockwell B (HR B) max
304	40	205	515	201	92
304L	40	170	485	201	92
304H	40	205	515	201	92

Chemical Composition Standard of UNS S30400 Tube Clamps

Grade		Mn	C	Si	S	Cr	P	N	Mo
304	minimum maximum	- 2.0	- 0.08	- 0.75	- 0.030	18.0 20.0	- 0.045	- 0.10	-
304L	minimum maximum	- 2.0	- 0.030	- 0.75	- 0.030	18.0 20.0	- 0.045	- 0.10	-
304H	minimum maximum	- 2.0	0.04 0.10	- 0.75	- 0.030	18.0 20.0	-0.045	-	-

Conclusion

BU-Lok Valves & Fitting India Pvt Ltd offers a comprehensive range of bottom plates manufactured from high-quality materials such as steel and stainless steel. Our bottom plates are available with various finish options, ensuring durability and corrosion resistance. We provide a wide selection of bolts in different grades to meet diverse application requirements. Choose BU-Lok for top-notch bottom plates that guarantee reliability and performance. Contact us today to explore our product offerings and experience exceptional quality and service.
